Warping Creels

CREEL CB/CFD

A perfect warp can only be produced when the tension of each end is constant irrespective of warping speed, package diameter or type of yarn.

We offer highly sophisticated warp creel which is a technological innovation to meet highest standard for preparing PERFECT BEAM which in turn helps improve your weaving efficiency.

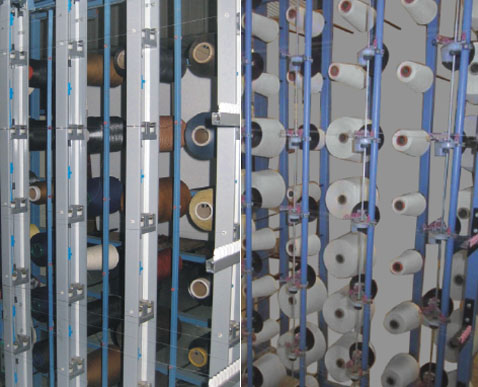

Creel CB

The threads are drawn through the slim tensioner profiles made from galvanized steel for durability and smooth finish.
The yarn from package is drawn out through two pairs of discs and three guide eyelets arranged in a straight line for extremely easy and simple threading of the yarn by a hook.
Tension is activated by high precision dual acting stainless steel spring element.
This positive tensioning device ensures precise and uniform tension control.
Motorised centrally controlled tensioners to get equal tension at both sides of the creel. We provide separate PLC on creel, which will interface with main PLC under close loop controls. (Standard with Lasertronic Model)
Continuous rotating tensioner by central drive to minimise any fluff accumulation in sideways and ensures uniform tension.

Creel CFD

Sturdy and modular construction having strong base with tubular supports
Self compensating tensioner ensures equal yarn tension irrespective of size of package diameter.
The spring element installed in a special oil bath which dampens the surge while drawing yarn.
Very precise tension regulation at different speed and at any winding density.
At the entry, big disc controls the ballooning of the yarn.
Each vertical row of tensioners are centerally adjusted.
The movable tensioner frames facilitate, to adjust optimum ballooning distance between package and tensioner.
The scale is provided over the hand wheel for equal adjustment on both the sides of creel.
Suspended tensioner frames allows to clean the floor space conveniently.
Both the side of creel tensioners are adjusted centrally with a push buttons by a Servo Motor for precise setting of equal tension. (Standard with Lasertronic Model)

CREEL CK

Model CK-R (Revolving Type) & Model CK-T (Trolley Type)

Centrally controlled tensioner for setting desired tension.
Main frame consists of strong base structure, having tubular supports.
Movable tensioner frame on each side facilitate to adjust optimum ballooning distance between package and tensioner.
Wider width travel of frames facilitate in rethreading the new set easily by going in-between the tensioner frame and package holders.

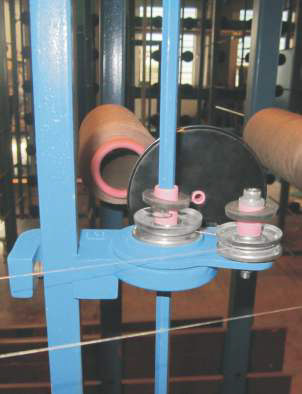

Tensioner device is specially designed for low tension range. It has radially located pair of coated tensioner discs, which rotates over ceramic supports.
The tensioner device is equipped with balloon breaker at the yarn entry from package and horse type self threading yarn guide at outlet to facilitate threading of yarn smoothly and conveniently.

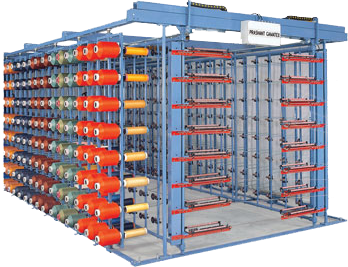

CREEL PTR/PTT

Revolving Type (PT - R)

Draw-off inward type system.
Cone holders are mounted on both sides of each revolving modular frame.
New set of cone feeding is very easy and convenient from outside.
Recreeling is possible during warping operation, there by improving over all machine usage time
Very quick positioning of new cones.
Central corridor facility. It is easy to access yarn breaks on both sides and quicker to attend.
Dose not require any extra space on floor for next set of yam package.

Trolley Type (PT - T)

Draw-off outward type system
Sturdy robust structure
Trolleys are equipped with ball bearing mounted wheels for easy manoeuvrability
Easy exchange of trolleys
Short lot change period while using extra set of trolleys
